Brand Name : Sinuo
Model Number : SN2219-BS
Certification : Calibration Certificate(Cost Additional )
Place of Origin : China
MOQ : 1
Price : Customized
Payment Terms : T/T
Supply Ability : 10 sets per month
Delivery Time : 30 Days
Packaging Details : Plywood Case
Applied Standard : BS1363-2,SASO 2203
Applied Figure : BS1363-1 fig 17a,17b, BS1363-2 fig 30
Temperatur Measuring Channel : 8 Channels
Temperature Measuring Range : -200 to 1820℃
AC Load Channel : Dual channels
Current Adjust Range : 0–45A
Control Mode : PLC
Display Mode : 5-inch TFT touchscreen
BS1363-2 Temperature Rise Test System with Dummy Front Plate
Product Description:
This advanced Temperature Rise Test System (Model: SN2219-BS) is engineered to rigorously evaluate electrical components under thermal stress, fully compliant with IEC 60884-1:2022 (Clause 19, Figure 20) and BS1363-1/2 standards (Figures 17a, 17b, 30). The system ensures precise temperature monitoring and load simulation for safety certification.
Technical Specifications:
1.Plywood box: Constructed from BS1363-1 Figure 17a.
2. Thermal Clamping Assembly: Designed per BS1363-1 Figure 17b.
3. BS temperature rise plug: Conforms to BS1363-2 Figure 30.
4.Dual-Channel DC Power Supply: Delivers test currents as specified in Table 2.
5.8-Channel Temperature Logger:
Display form | Curve (historical curve), bar graph, current alarm (historical alarm), file record list |
Measuring range | -200 to 1820℃ (adaptable to the thermocouple graduation range) |
Thermocouple | K J E T N S R B |
Basic accuracy | 0.2℃+2digits (excludes thermocouple error) |
Display | 5-inch TFT touchscreen (854×480 pixels) with real-time curves, alarms, and data logging. |
Channel | 8 channels |
6.Dual-Channel AC Load: Adjustable 0–45A (30A+15A) via resistive control.
7.Automation: Above items 4~6 are integrated in one control cabinet, PLC-controlled with touchscreen interface for seamless operation.
![]() |

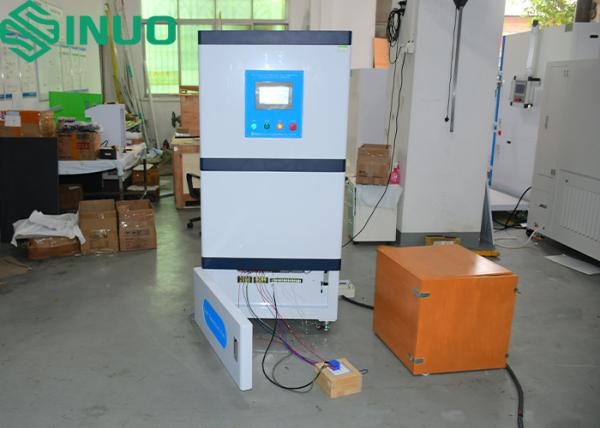

BS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45A Images |
